Bus sidewise panels assembly line
Bus sidewise panels assembly line

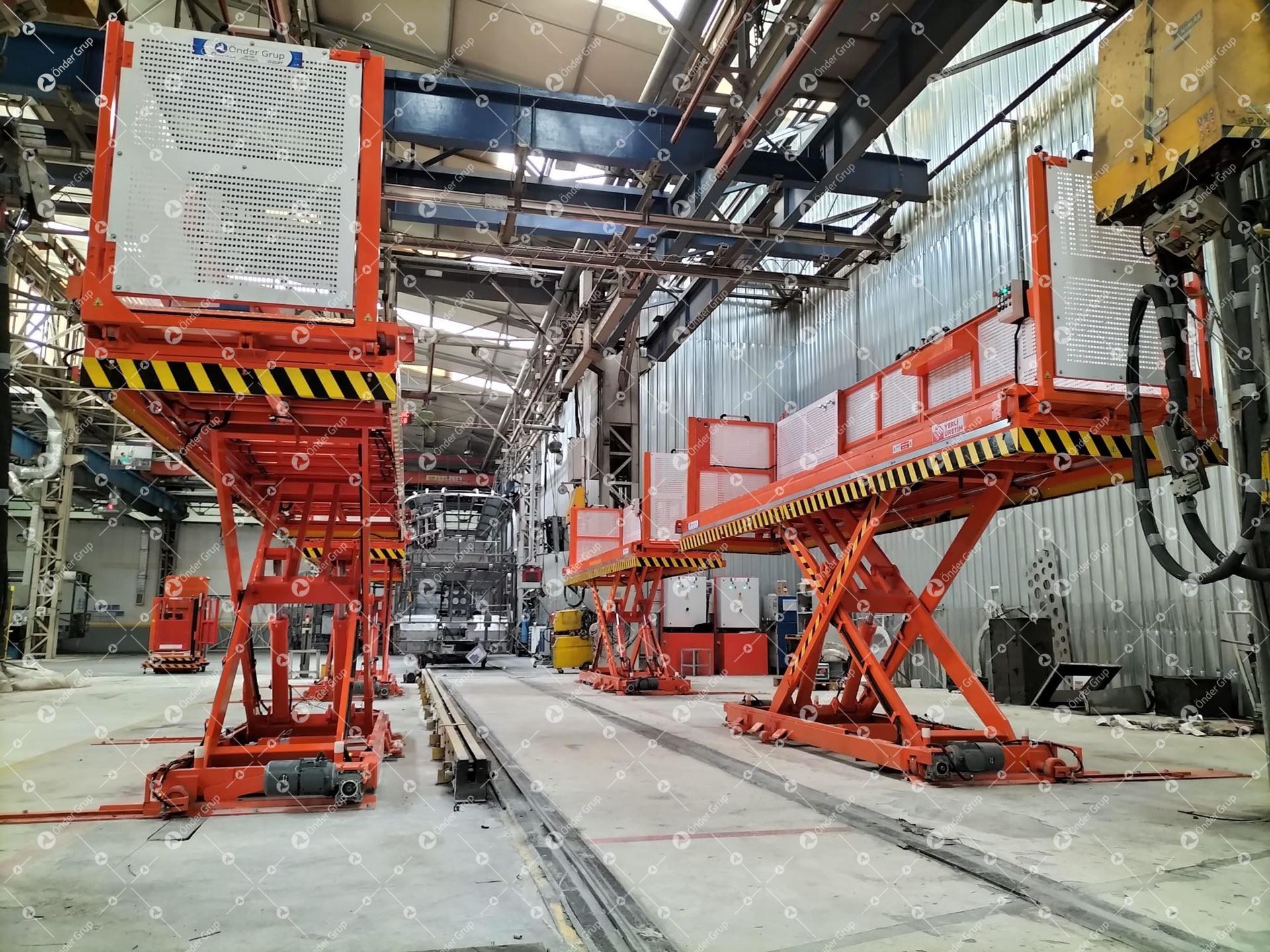

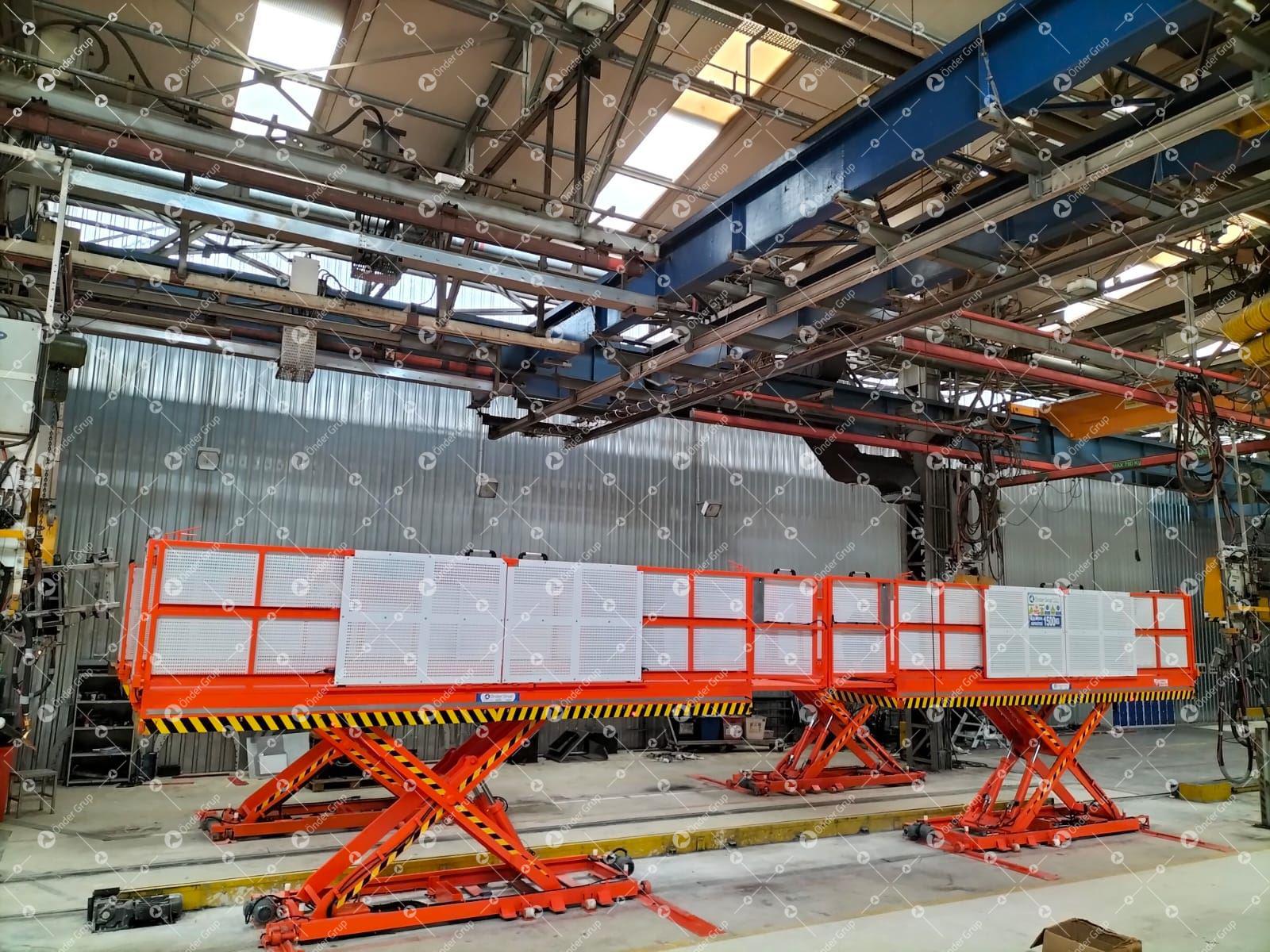

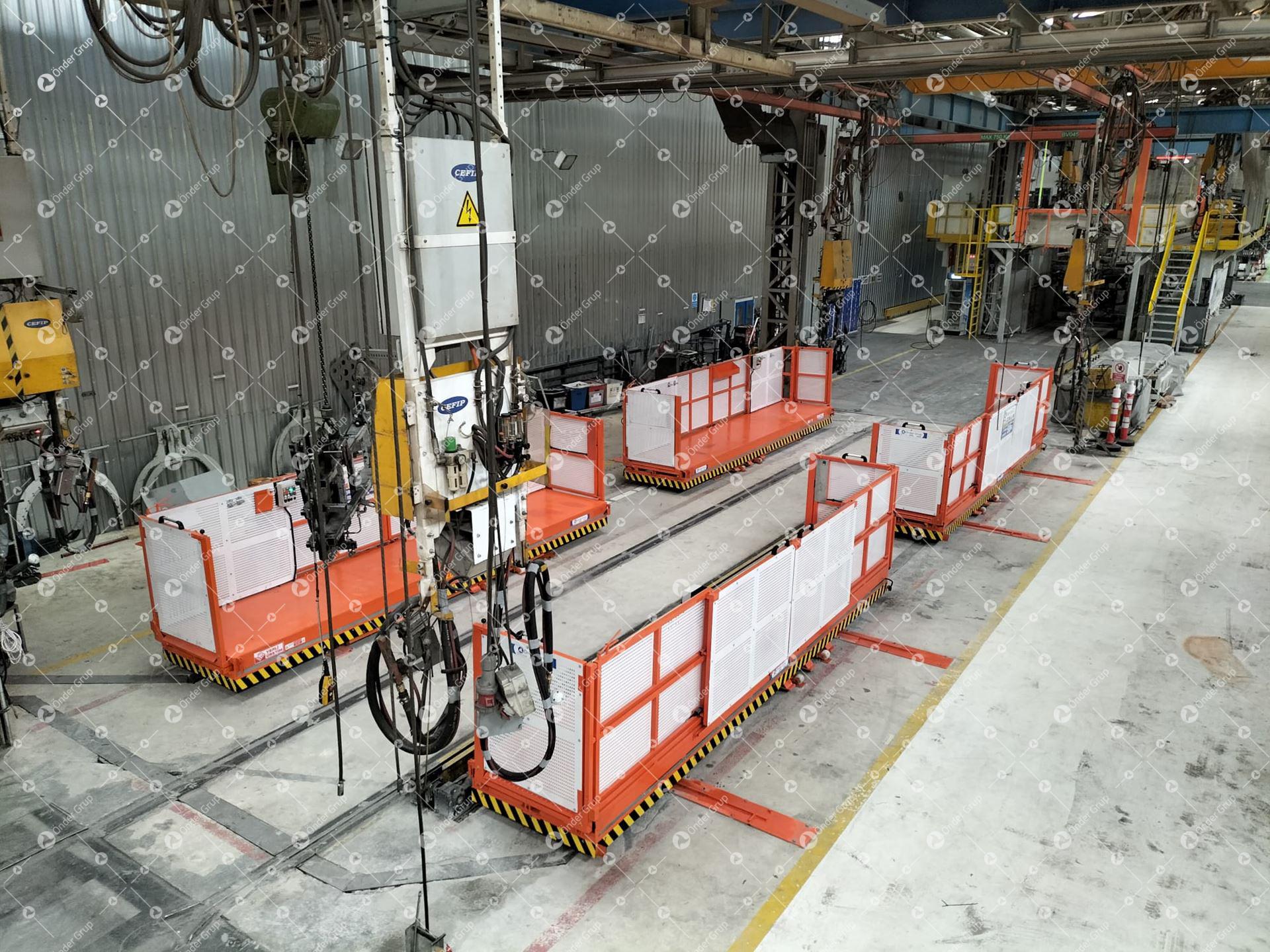

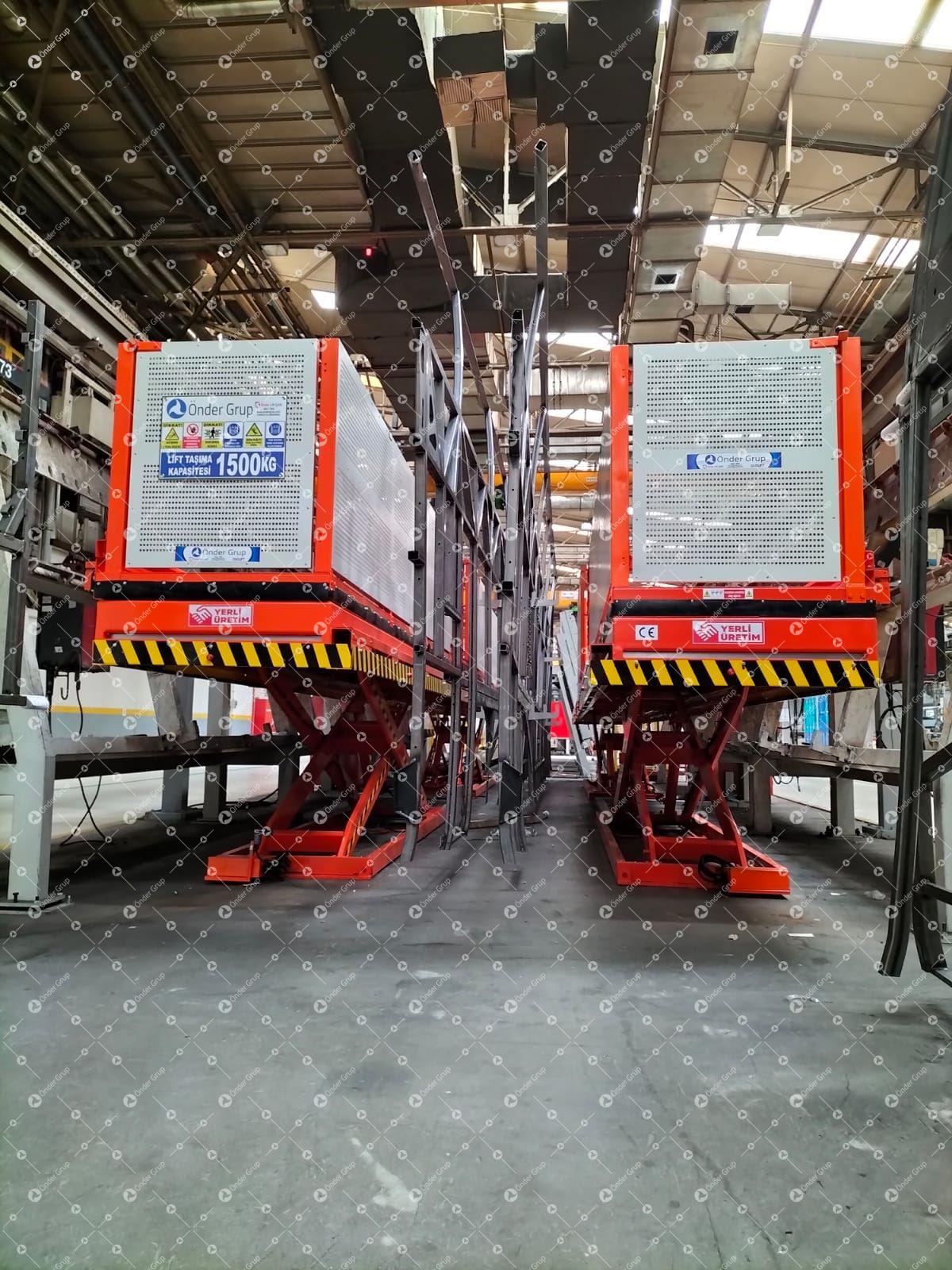

Bus sidewise panels assembly line, there is a one set of machines consisting of 2 Tandem Scissor Lift Table on both sides of the bus.
Each Lift Table can be controlled individually or can be controlled in synchronization.
Lifting capacity: 1500kg
Lift Stroke: 2500 mm
Platform Dimension: 15000×1100 mm
Slide Deck Extension: 700 mm
Punched sheet Handrails in two short sides height 1,1 m
