Lift Tables

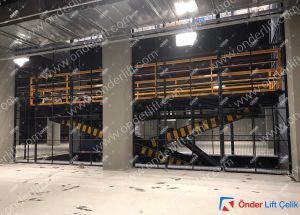

High Scissor Lift Table

STANDART MODELS

Type Art No () Capacity (kg) E X F - Platform Dimensions (M) H - Stroke (mm) C - Closed Height (M) Lifting Time (sn) Motor (kW) Weight (kg)
Filter
ESP.3/05-24-1 55.05.0015001350 x 10002400530321,5550
ESP.3/05-24-2 55.05.0025001500 x 10002400530321,5650
ESP.3/05-35 55.05.0035001800 x 10003500530452,21100
ESP.3/05-43 55.05.0045002250 x 12004300530552,21600
ESP.3/10-24-1 55.10.10010001350 x 10002400550382,2650
ESP.3/10-24-2 55.10.10110001500 x 10002400550382,2750
ESP.3/10-35 55.10.10210001800 x 10003500550452,21300
ESP.3/10-43 55.10.10310002250 x 12004300650602,21900
ESP.3/15-24 55.15.200 15001500 x 10002400550402,2850
ESP.3/15-25 55.15.20115001800 x 10002500550452,21500
ESP.3/15-43 55.15.20215002250 x 120043006506032200
ESP.3/20-24 55.20.30020001500 x 10002400550402,21000
ESP.3/20-35 55.20.30120001800 x 10003500650452,21650
ESP.3/20-43 55.20.30220002250 x 150043007506033000
ESP.3/20-58 55.20.30320003000 x 200058007507534000
ESP.3/30-40 55.30.40030002250 x 150040008007043500
ESP.3/30-55 55.30.40130003000 x 200055008008044750
ESP.3/40-40 55.40.50040002250 x 150040008007543750
ESP.3/40-55 55.40.50140003000 x 200055009009045250

Scissor lift table load capacity from 100 kg to 100 000 kg.

Comprehensive program of accessories and options for customization of the single scissor lift tables.

24 V DC control unit and operating device with Deadman's switch.

Armored hoses to provide hose damage protection

Complies with European safety standard EN 1570-1 - CE certified.

Safety spacing between all moving parts of the lift table.

IP54 approved electrical system.

Overload protection.

Adjustable trap prevention safety trip bars on all four sides of the platform.

All lifts tested to +30% overload

The single scissor lift table is equipped with hose burst valves and mechanical locks for servicing and maintenance.

Maintenance-free bearing surface.

High quality cylinders for smooth, safe operation

Low-maintenance and trouble-free operation thanks to high quality, robust components.

Maintenance brackets

Accessories, such as removable protective railings, cross-over brackets, bellows, roller track attachments, special, turning and tipping platforms, are available.

Lifting eye bolts

Do you need custom designed lifting solutions?

Contact a Lift Expert Today.
